ZLINE 30 in. Under Cabinet Stainless Range Hood Heat Lamp 523-30

Regular price
$1,249.95
Regular price
$1,589.95
Sale price
$1,249.95
Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns
Learn More.

Descriptions:

ZLINE 30" Under Cabinet Stainless Range Hood Heat Lamp 523-30

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - Yes, requires RK-30 attachment
Rear Ducting Option - Yes, requires 520/523/527-RDUCT attachment
Ceiling Heights Options:
12", 2 Pc. Chimney - requires 520/523/527-30-1FTEXT
24", 2 Pc. Chimney - requires 520/523/527-30-2FTEXT
36", 2 Pc. Chimney - requires 520/523/527-30-3FTEXT

Crown Molding(s) -
NA
Certified Outdoor Use -
No
Available in -
36"(523-36), 42"(523-42), 48”(523-48)

PRODUCT DESCRIPTION:

The ZLINE 523-30 is a 30 inch professional under cabinet stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430 grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many modern features, such as:

  • Dishwasher-safe stainless steel baffle filters
  • Built-in LED lighting
  • High performance 4-speed motor with speeds up to 700 CFM

All ZLINE range hoods are ETL Listed and come equipped with everything needed to easily install and use.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 523-30 ships next business day when in stock.

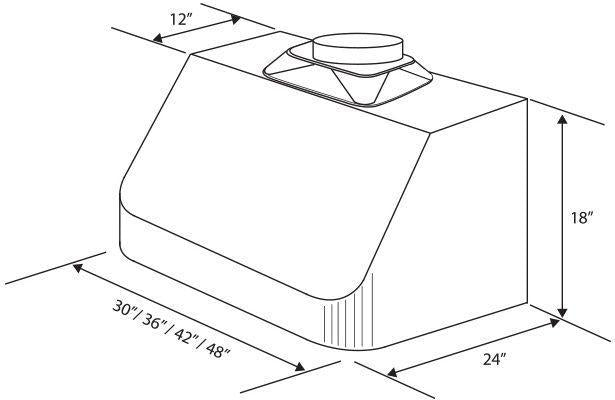

Dimensions:


Dimension:
30" W x 24" D x 18" H
Venting Size: 8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H): 480/560/650/700 (CFM) (CFM)
Lighting: 2 Directional LED Lights (3-Watt)
Hood is equipped with heat lamp, white heat lamp bulbs sold separately through local hardware store
Noise Level: 48/55/63/65 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Under Cabinet Mounted
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:
Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Manufactured by ZLINE Kitchen & Bath
Model No. 523-30 (ETL Listed)
UPC: 814118020399
Certifications: ETL and UL Listed


Useful Document:



INSTALLATION INSTRUCTIONS

Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.
